订购导引
| 适用螺杆外径 | 轴向负荷 | 静负荷 | 转速上限 | 轴承代号 | 适用型号 | |
固定端 | 支持段 | |||||
Φ8 | 74 | 200 | 52800 | 706A | FK06 EK06 | FF06 EF06 |
Φ10-Φ12 | 103 | 280 | 40000 | 708A | FK08 EK08 | FF06 EF08 |
Φ10-Φ15 | 195 | 530 | 24000 | 7000A | BK10 FK10 EK10 | BF10 FF10 EF10 |
Φ14-Φ18 | 217 | 610 | 22000 | 7001A | BK12 FK12 EK12 | BF12 FF12 EF12 |
Φ20 | 240 | 700 | 19000 | 7002A | BK15 FK15 EK15 | BF15 FF15 EF15 |
Φ25-Φ28 | 413 | 1220 | 16000 | 7230A | BK17 FK17 | BF17 FF17 |
428 | 1340 | 15000 | 7004A | BK20 | BF20 | |
587 | 1690 | 13000 | 7204A | FK20 EK20 | FF20 EF20 | |
691 | 1560 | 9500 | 7204B | FK20 EK20 | ||
2240 | 6000 | 20TAC 47B | BK20 | BF20 FF20 EF20 | ||
Φ30-Φ36 | 709 | 2090 | 12000 | 7205A | BK25 FK25 | BF25 FF25 |
820 | 1920 | 8500 | 7205B | BK25 FK25 | ||
2910 | 4500 | 25TAC 62B | BK25 | BF25 FF25 | ||
4700 | BK25 | |||||
Φ40 | 939 | 3000 | 10000 | 7206A | BK30 FK30 | BF30 FF30 |
1082 | 2760 | 7100 | 7206B | BK30 FK30 | ||
2980 | 4300 | 30TAC 62B | BK30 | |||
4850 | BK30 | |||||
Φ45 | 1466 | 3750 | 6000 | 7207B | BK35 | BF35 |
3150 | 3600 | 35TAC 72B | BK35 | |||
5150 | BK35 | |||||
Φ50 | 1834 | 4700 | 5300 | 7208B | BK40 | BF40 |
5300 | 3600 | 40TAC 72B | BK40 | |||
10600 | BK40 | |||||

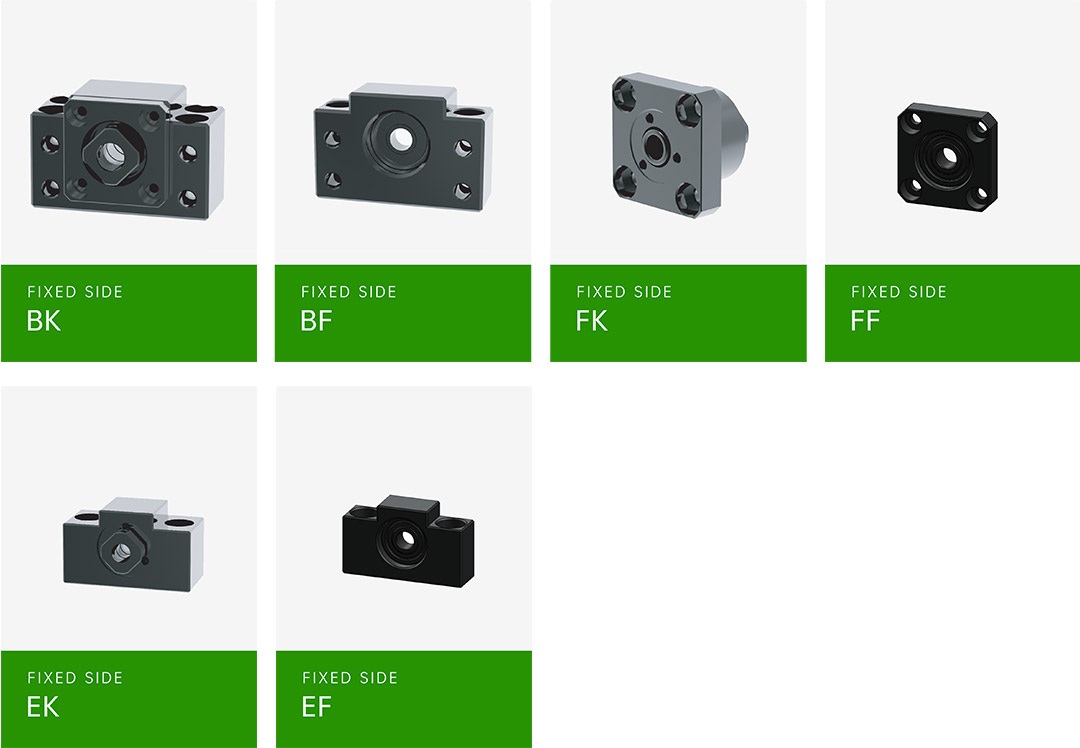

产品系列
